Facilities

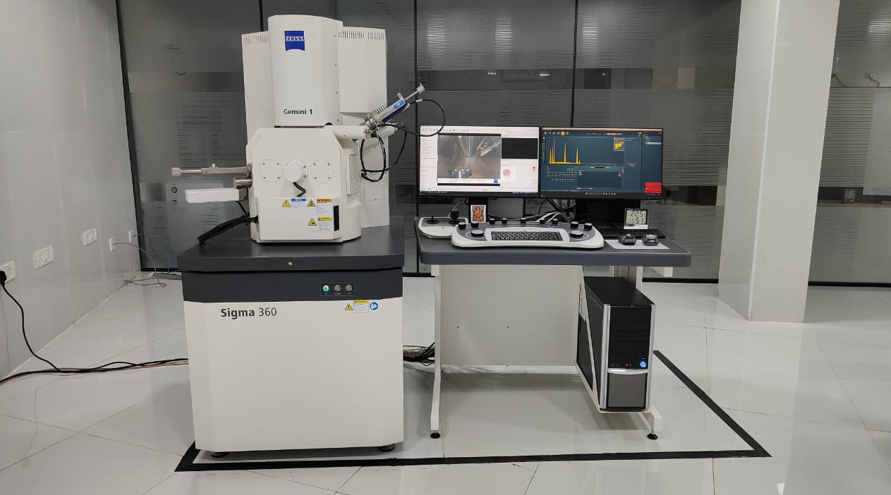

Field Emission Scanning Electron Microscope(FESEM)
- Resolution – 0.9nm @ 15kV, 1.3nm @ 1kV, 1.9nm @ 500V (max. probe current 20nA)
- Acceleration voltage – 0.02kV – 30kV
- Electron Source – Schottky field emitter
- EDS – 30 mm² at count rates up to >1,000,000 cps (Oxford)
Simultaneous Thermal Analysis (Thermo Gravimetric Analysis)
- Balance type: Top-loading, vertical & differential balance
- Balance Digital resolution: 0.03 μg
- Weighing range: ± 250 mg, max.sample load 1g
- Temperature Range: Room temperature to 1600°C
- Temperature precision (repeatability): 0.3 K
- Heating rate: 0.001 to 100 K/min
